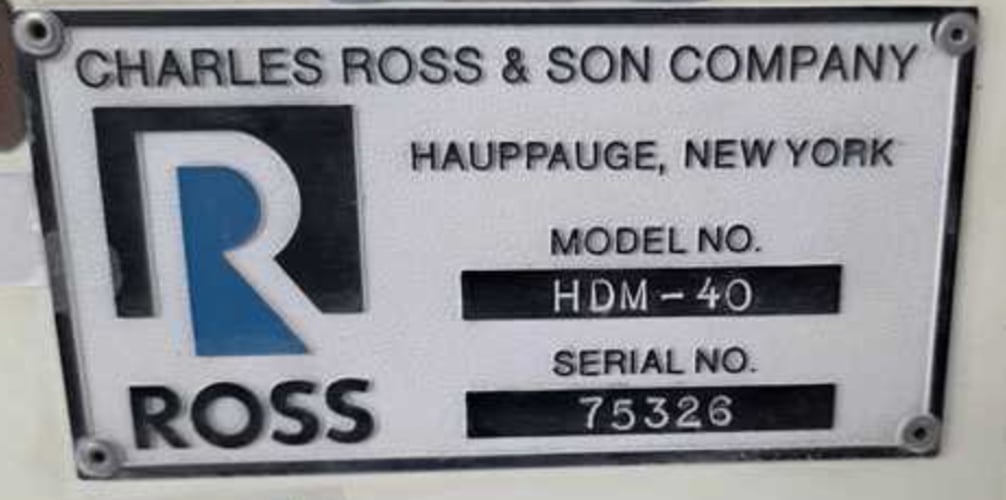

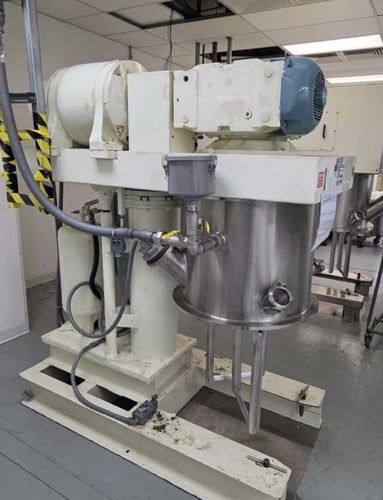

DESCRIPTION FOR BOTH MIXERS: ROSS HDM-40 GALLON DOUBLE PLANETARY MIXER

• 5 to 40-gallon working capacity

• Designed to mix under a full vacuum —29-1/2” HG

• An air over oil hydraulic lift system is included to raise and lower the top of the mixer with drives and mixing blades.

• All product contact parts 316SS with a 150-grit finish and exterior stainless with an 80-grit finish.

• Driven by a 15 HP (to be confirmed) motor with a mechanical variable speed drive.

• All carbon steel surfaces are painted with a two component epoxy.

• Fitted with standard rectangular profile mixing blades

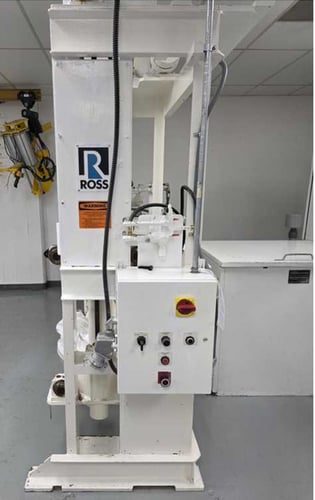

• Comes with a control panel suitable for 3 PH / 60HZ /480 VOLTS

• Vacuum hood has a 2” sight port, a light fixture, a vacuum exhaust port and a port with 80 Watts / 120 volts EX-PROOF light.

• Mixer comes with one mix can as follows:

• Made from 316 SS with interior finish 150-grit and exterior finish 80-grit

• Internally machined for use with a discharge press

• Designed for vacuum mixing

• There is no jacket on the mix can. These can be added by a third party at the buyer’s expense.

• Bottom outlet is a 4” Tri-Clover 316L SS flush plug connection with a 4” flush plug.

• Mounted on casters

• Push pull handle

• Additional mix cans are available at an additional cost.

• Prior use for manufacturing oral care products.

• Approximate weight of the mixer is 6234 Lbs

• Manufactured in 1999/2000.
